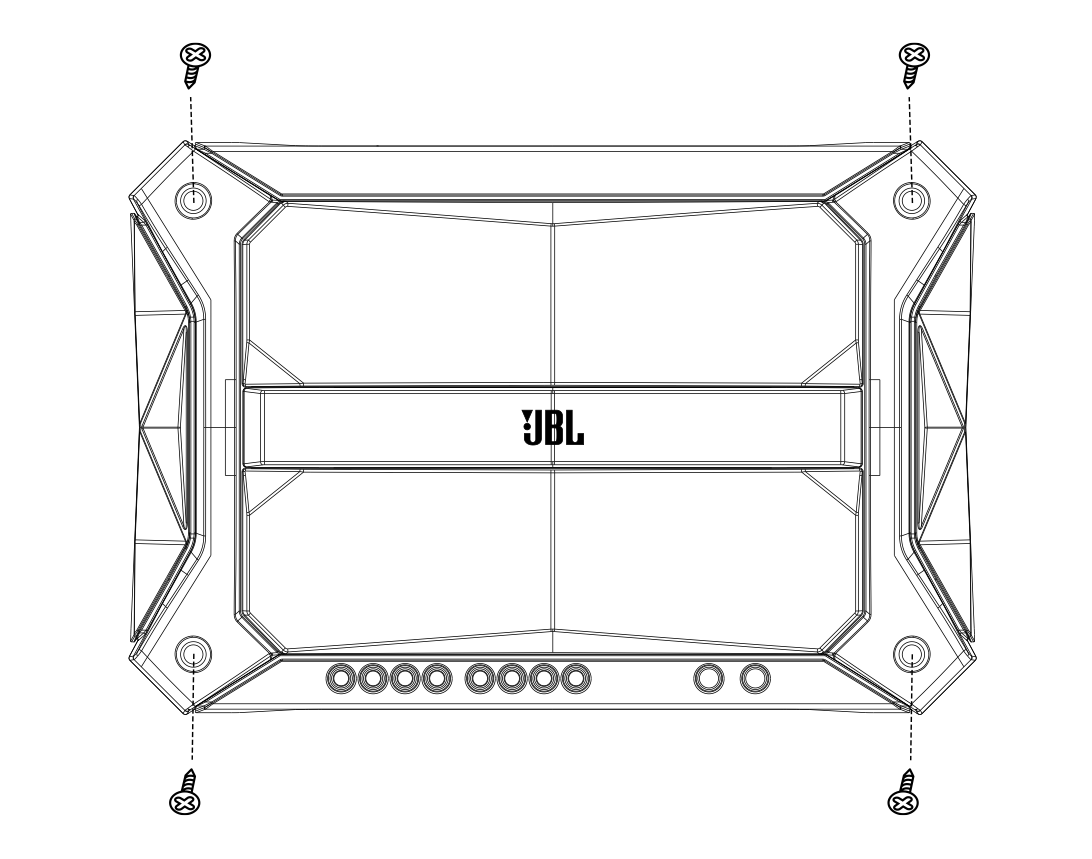

Stadium 4 Class D Amplifier
High-performance, mono Class D amplifier
High-Efficiency, Low Distortion Class D
Full-range, 4-channel
Audio Specifications
Operating voltage 9-16V
RMS power @ 4 ohms 100W x 4(Full), 200W x 1(Sub)
RMS power @ 2 ohms 120W x 4(Full), 350W x 1(Sub)
RMS bridged power @ 4 ohms 240W x 2 (Full)
Total peak power 1500W
Frequency response 15Hz – 35kHz@-3dB (Full) 10Hz – 320Hz (Sub)
Crossover filter LPF/HPF 32Hz – 320Hz Variable 12dB/Oct
THD + N at rated power ≤0.1%
High input maximum signal level 20V
High input maximum sensitivity 2V
Line input maximum signal level 2V
Line input maximum sensitivity 0.2 V
Line-in signal-to-noise ratio (reference to 1 watt) ≥ 80dB
Quiescent current draw ≤ 1.6A
Fuse size 2 x 30A
Dimensions (H x W x D) 54.2 x 179.6 x 365.3 (mm)
Weight 2.58 Kg
